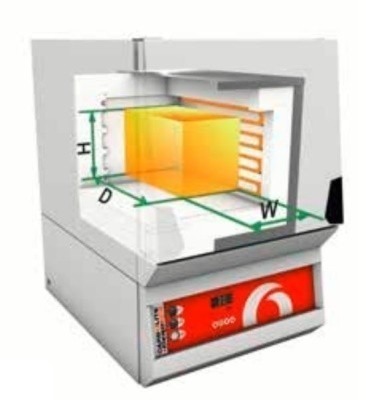

Programmable laboratory chamber furnace
CWF1313-230SN (Carbolite Gero)
The CWF range of general purpose laboratory chamber furnaces is bench mounted. The CWF1313-230SN comes with a maximum operating temperature up to 1300°C and 13 litres chamber volume.
Standard features:
- 1300 °C maximum operating temperature
- Vertical lift door keeps heated surface away from the user
- Delayed start / process timer function as standard
- Hard wearing alumina element carriers, furnace entrance & hearth
- Energy efficient low thermal mass insulation
- Free radiating wire wound elements for optimum uniformity
- 1 program with 24 segments
- Ramp, dwell, step, call, end segments
- Easy access to elements & controls simplifies maintenance & servicing
Technical Specification
| Field | Specification |
|---|---|
| Max Temp [°C] | 1300 |
| Max. continuous operating temperature [°C] | 1200 |
| Heat-up time [mins] | 121 |
|
Dimensions: Usable chamber H × W × D [mm] |
200 × 200 × 325 |
|
Dimensions: External H × W × D [mm] |
655 × 435 × 610 |
|
Dimensions: External with door open H × W × D [mm] |
905 × 435 × 610 |
|
Temperature uniformity of ± 5 °C within H × W × D [mm] |
120 × 120 × 225 |
| Volume [litres] | 13 |
| Max. power [W] | 3100 |
| Weight [kgs] | 47 |
Industries / Private Laboratories: ₹200/hr/sample
Other Academic Institutes: ₹100/hr/sample
Internal Users Charges: ₹50/hr/sample
The user must fill the requisition form and provide all the sample details. The form should be duly signed by the authorized signatory of the Institute/ Guide/ HOD and emailed to cif@krmangalam.edu.in. A confirmation mail will be sent by CIF along with a User Id and final amount to be paid for the facility. After the payment, user can submit the samples in person or post the samples on the following address: Central Instrumentation Facility, B409, K. R. Mangalam University Sohna Road, Gurugram, Haryana, India, PIN 122103
Central Instrumentation Facility, B409, K. R. Mangalam University Sohna Road, Gurugram, Haryana, India, PIN 122103
How to Book
Account details for the payment are
OR
Click on any payment gateway.
A confirmation mail of the payment must be sent to cif@krmangalam.edu.in with reference code as the subject of the mail.
For any queries regarding the measurements, please contact, Director, CIF, K.R. Mangalam University, Sohna, Gurugram, Haryana, India 122103 on the email director.cif@krmangalam.edu.in within 10 days after receiving the results.
All the communication should be addressed to:
Director
Central Instrumentation Facility (CIF)
Room No: B-409, B-Block, K.R. Mangalam University,
Sohna, Gurugram, Haryana, India
PIN 122103
E-mail: cif@krmangalam.edu.in
